Pinion Vertex Finish
Our Pinion Vertex Finish is made from cement reinforced with natural synthetic fibers (PVA), with rustic finish inorganic pigments which are used for its colouration.
Technical Characteristics

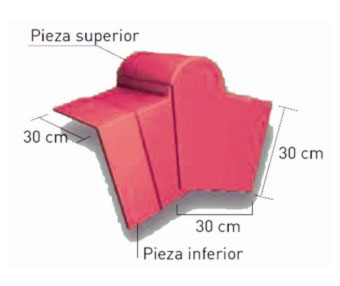

| Measures | Lower: 30 x 30 x 30 cm Upper: 30 x 30 x 30 cm |
| Wings length | 30 cm (Overlap: 10 cm) |
| Nominal thickness of the piece | 6.5 - 7 mm |
| Dimensional tolerance | According |
| Reaction to fire | Class A1 UNE-EN13501 |
| Behavior to external fire | According |
| Heat / rain / snow resistance | According |
| Weight | Upper: 3.3 Kg Lower: 3.2 Kg |
Applicable regulations
- Classification: UNE - 494 Asbestos free
- Use according to UNE Standard - 88111
- Metallic fixings: UNE - 88121
- Watertightness: UNE - 88122
- On-site cut: UNE - 412
,%20height=2268,%20loading=lazy,%20max_height=2268,%20max_width=4032,%20size_type=auto,%20src=https://f.hubspotusercontent-eu1.net/hubfs/25261064/20211028_154534%20(1).jpg,%20width=4032})
Colour Options
The product comes in the following finishes: NATURAL color (cement gray) and RUSTIC (mass colored “tile red”).
Natural Grey
- Natural Grey
Other colours
- Rustic
