Plate and Part Smoke Outlet
Our Smoke Outlet Plate and Piece is made from cement reinforced with natural synthetic fibers (PVA), with rustic finish inorganic pigments which are used for its colouration.
At Tubex, we manufacture a collection of fibre cement products, however if we do not have the size you are requiring for your project, then we will be able to provide you with a specialist quotation to best suit your projects needs.
Technical Characteristics

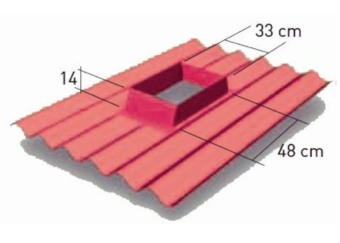

| Plate measurements | 152 x 110 cm |
| Piece measurements | 51 x 35 x 65 cm |
| H piece | 15 - 20 - 30 cm |
| Total height | 71 cm |
| Nominal thickness of plate and piece | 6´5 – 7 mm |
| Density | 1,580 g/cm3 |
| Reaction to fire | Class A1 (non-combustible) UNE-EN13501 |
| Plate weight | 25 Kg |
| Piece weights |
15 cm: 5 Kg |
Applicable regulations
- Classification: UNE - 494 Asbestos free
- Use according to UNE Standard - 88111
- Metallic fixings: UNE - 88121
- Watertightness: UNE - 88122
- On-site cut: UNE - 412
,%20height=2268,%20loading=lazy,%20max_height=2268,%20max_width=4032,%20size_type=auto,%20src=https://f.hubspotusercontent-eu1.net/hubfs/25261064/20211028_154534%20(1).jpg,%20width=4032})
Colour Options
The product comes in the following finishes: NATURAL color (cement gray) and RUSTIC (mass colored “tile red”).
Natural Grey
- Natural Grey
Other colours
- Rustic
